Products
绷缝机系列

JIK500-01CB UT-Z
Computer-controlled Direct Drive High-speed Platform Sewing Machinewith Autornatic Thread Trimmer


    The machine is equipped with automatic cutting device,greatly reducing operating repeat the previous process,thereby save time,
increasing productivity,and indirectly support the acceieration of production,which makes more power,thus reducing operating costs.

On the decorative line cutting
Decorative line cutting on the line,in particular the repuest to spend decorative line processes,the role of greater savings in the tangent
cumbersome operation can significantly increase productivity.The optional cutting line agencies within and outside the cut line.
Cut off the assembly line
  Can simultaneously bend tangent needlework and sewing.and using the hook-line devices.Line cut.put the wire from the needle
plate inside hook up the smooth conduct of the following operations.
Direct drive servo system
  Equipped with direct-direct-drive device,whick makes the machines more intelligent,energy-saving technology has greatly
enhanced the efficiency of product processing,thereby reducing operating costs.
Presser foot lift device
  Foot pedal charge,charge can be lifted foot,the operation is very handy,not only can reduce the amount of operator’s labor,
but also to increase productivity.
Threads easy and feasible
Will open the front cover to press down at present black button gentiy,the agent foundation then from the machine interior ball,then simply will carry on threading,will further raise the working efficiency.
Forces to drain oil organization
  Uses the copper pipe and the linoleum carries on forces to drain the oil,but controls the needle good organization place oil mass effectively,eliminates the oil leak phenomenon.
Differential motion adjustment
  Because regulating lever design in machine’s exterior,therefore does not need to carry on lifts the high-pressured foot or tums of the protecting cover and so on tedious operation,then carries on the simple adjustment.
The needle foot length adjustment is simple
  Just rotate the rotation button eyes can sdjust.the use of new institutions linked synchronized,so conditioned,also can maintain the same differential ratio,so that sewing can slso be easily change the length of pin.

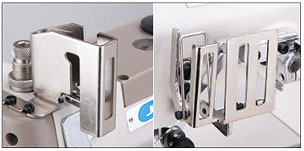

The move protects the needle
  Uses the mobile to protect the needle,but the protection machine needle,reduces wears,prevents to jump the line,maintains the stable artistic needle foot.
Has HR installment
  When machine high-spdde operation,as a result of with the cotton material friction,may cause machine needle’s temperature to reach as high as to 200 degrees centigrade about,to reduce needle;s temperature,prevents when the high temperature the cotton material dissolve,as well as to cause the neediework smoothly through each channel,but has provided the HR silicone oil installment,may obtain the stable artistic needle foot.
Safety device
  Because installed has protected the eye and the hand guard and so on special protector,sparated the movement spot,protected in sewing
operates person’s safety.
JIK500-02BB JIK500-01DB
On Rolls The Strip Table Model To Stretch The Seam Machine With Both Sides Decoration Fell High-speed Interlock Sewing Machine(Four Needles Six Thread)

Sews the underwear or the T-shirt on and so on rolls the sewing machine which the strip uses,has on rolls the strip special-purpose to deliver the cloth tooth and to press the foot,before therefore briefs’,crotch or T-shirt’s attachment and so on has the cloth building store height low spot also to be possible with ease to pass. The both sides decoration basic seam stretches the seam machine,because is 4 needlework,causes the needle foot to be more reliable.
If the use main item may also carry on the big piece cotton material the splicing tailoring work.
JIK500-FQ JIK500-04A
Cut-yarn Multi-functional Stretch Sewing Machine Double Needle Flatbed Bottom Cover Stitch Belt Loop Making Machine

The machine combines 01CB (basic),02BB (with roll bar),03YB(cover seam with),three functions in one easy to use. This machine is the platform for single-needle decorative stitching trousers and earrings before the cutter of the sewing machine sewing,with a direct-drive motor,electric control.Cutter,can freely adjust the length of trousers and earrings.
JIK500-01CB JIK500-05MB
High-speed Big Flat Bed Stretch Sewing Machine On The Lace Loose And Tight With Stretches The Seam Machine

The machine for basic sewing flatbed truck,a large fabric can easily be sewn. Women shorts elastic lace tights on the sewing machine with stretch sewing machine has transort the ration lace rubber band’s installment continually.
JIK600 Interlock Sewing Machine Specifications Table

                  Remarks
2.4 3.2 4.0 4.8 5.6 6.0 6.4
JIK500-01CB UT-Z Automatic thread trimmer  2 ○ ○ ○ ○ ○ ○ ○ 4 4.5 0.6-1.3 5
6.3		 5000
3       ◎ ◎ ○ ○ 5
JIK500-01CB  Basic model 2 ○ ○ ○ ○ ○ ○ ○ 4 4.5 0.6-1.3 5
6.3		 6000
3       ◎ ◎ ○ ○ 5
JIK500-05MB  With right-cut tool 2   ○ ○         4 4.5 0.6-1.3 5.8
5.1		 5000  Extra wide uses
3       ◎ ◎ ο ο 5
JIK500-FQ  Multi-functional 2   ○ ○         4 4.5 0.6-1.3 5.8
5.1		 6000  Extra wide uses
3       ◎ ◎ ο ο 5
JIK500-04A  Double-needle flatbed belt
loop making machine		 2   ○ ○         4 4.5 0.6-1.3 5.8
5.1		 5000  Extra wide uses
3       ◎ ◎ ○ ○ 5
JIK500-02BB  Sewing rolled-edge 2 ○ ○ ○ ○ ○ ○ ○ 4 4.5 0.6-1.3 5
6.3		 6000  Unilateral uses
3       ◎ ◎ ○ ○ 5
JIK500-01DB 4-needle,6-thread  4           ○ ○ 6 3.4 0.6-1.3 5
6.3		 5000  Compressing uses
